- Bolts measure 110 mm [ 11 cm ] in length, 8 mm diameter and the thread measures 17 mm [ 1.7 cm ] in length.
- These are used as replacement bolts and threads for French antique beds or armoires.

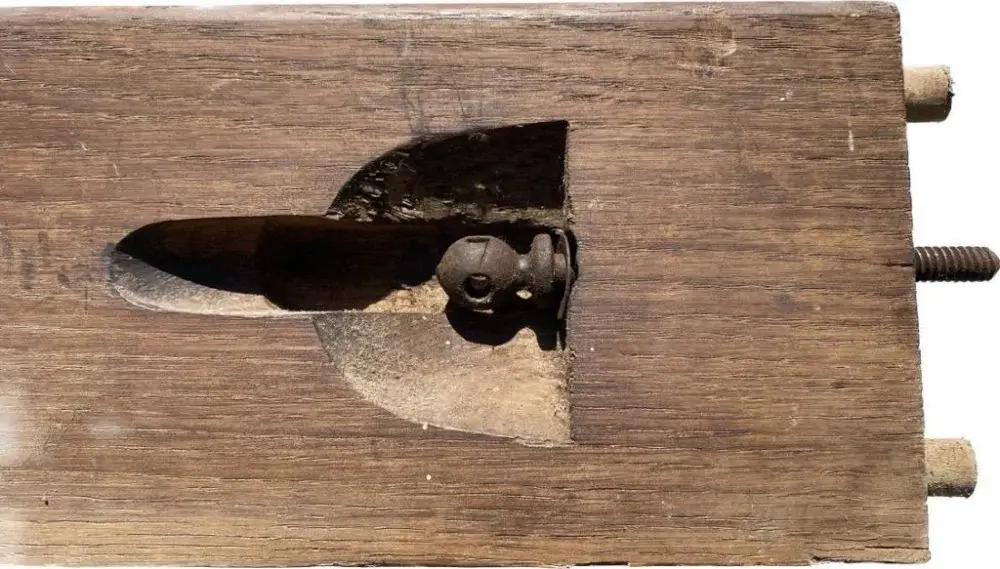

- The last photo below shows how the bolts are used in most French beds.
- The brass thread needs to be inserted into the headboard or footboard. The thread has a cut in the top so it can be screwed into the bed with a flat bladed screwdriver, your old thread needs to be removed first.
- These bolts are for use with the threads provided.
- In some instances they will work with existing threads, in the majority of cases, they will not.

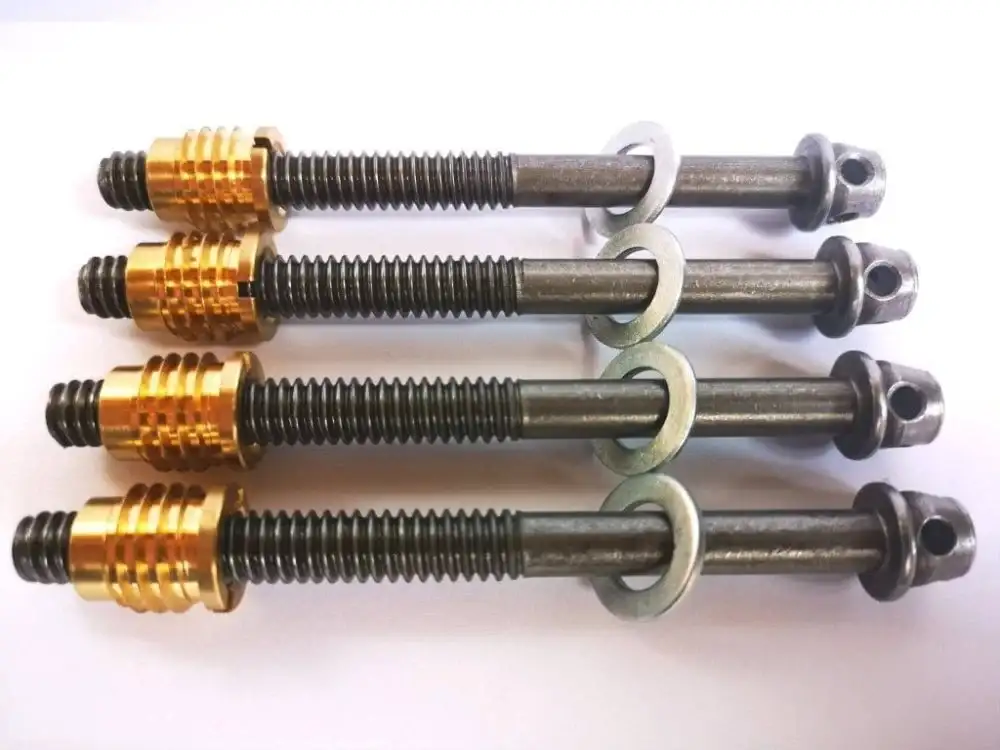

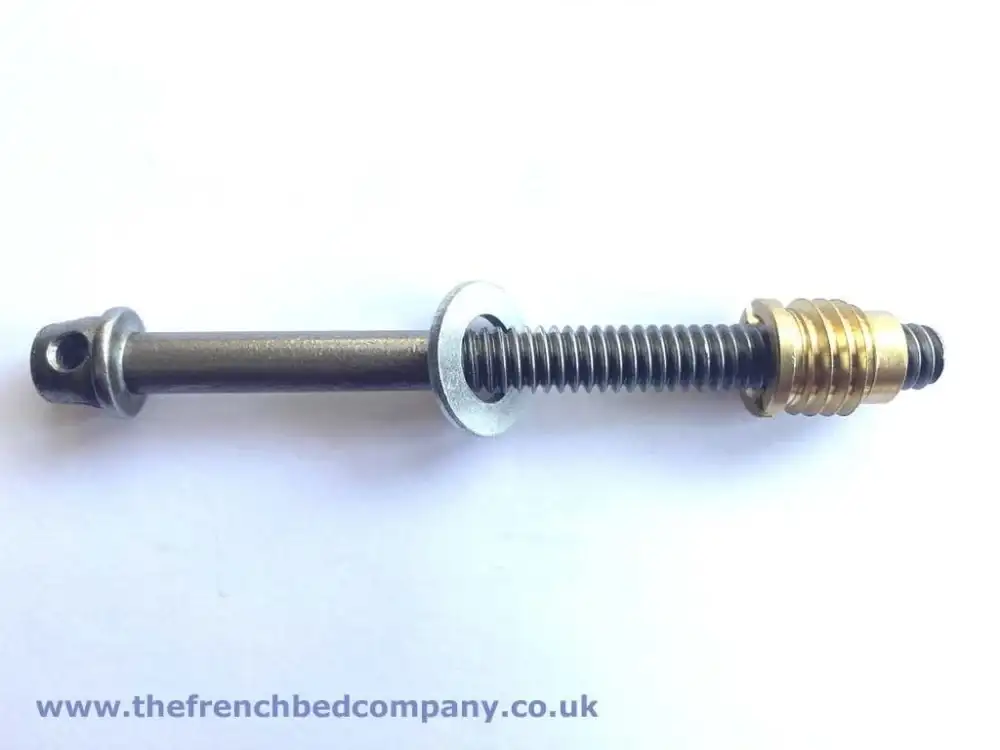

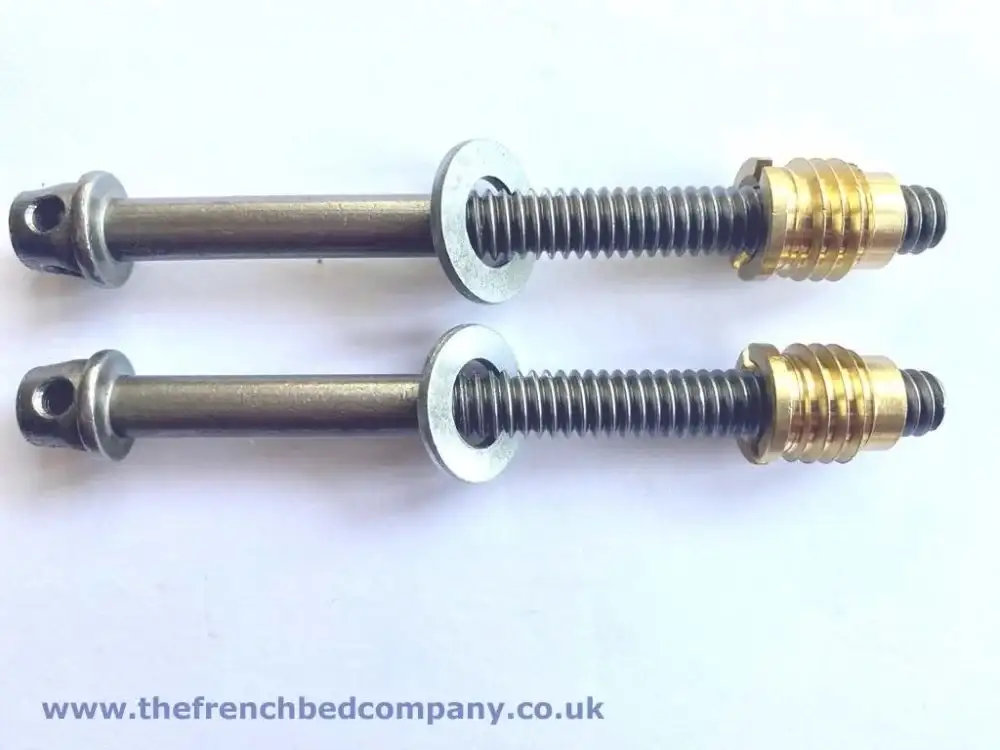

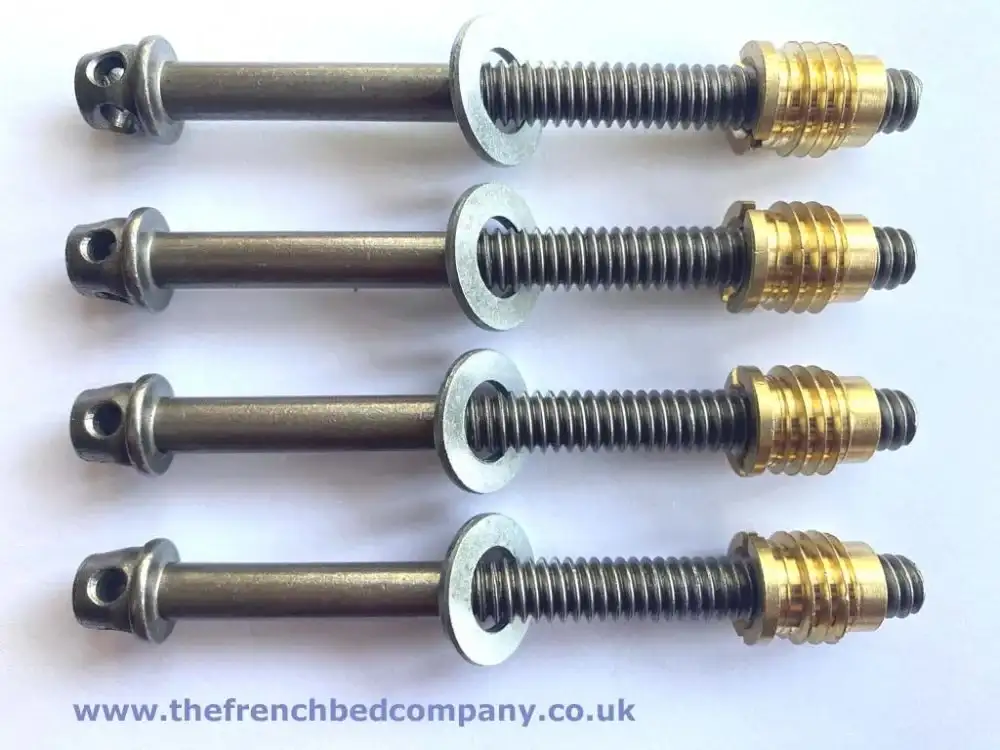

- Sold in packs of 1, 2 and 4.

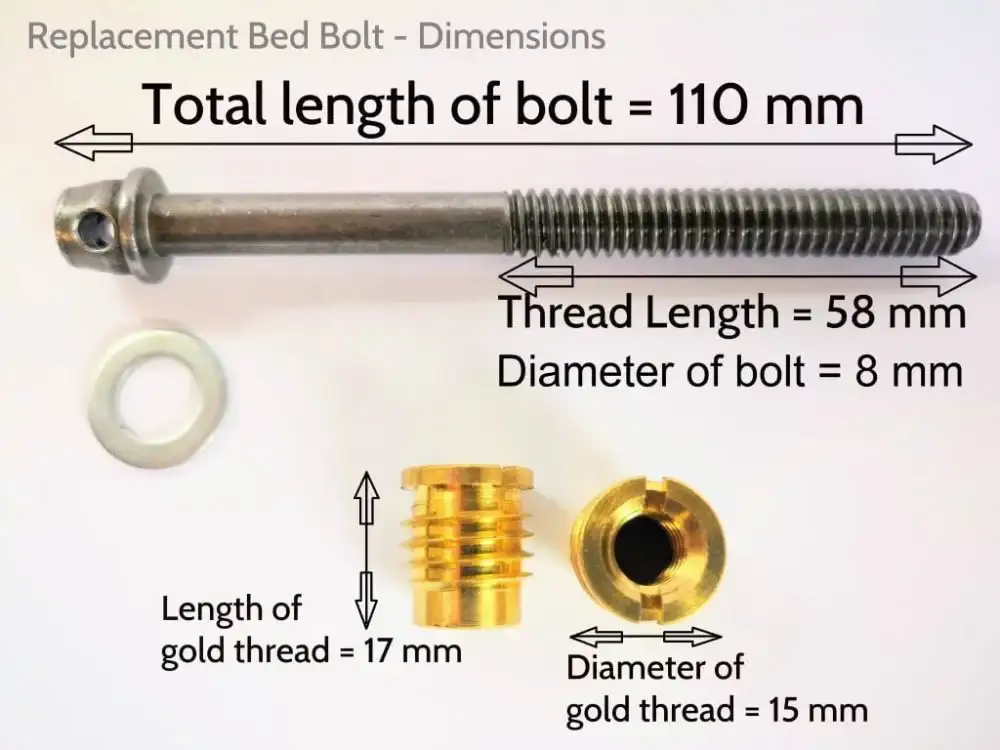

Measurements
- The bolt measures:
- 110 mm [ 11 cm ] length in total
- 58 mm [ 5.8 cm ] length of the thread on the bolt
- 8 mm [ 0.8 cm ] diameter of the bolt
- The thread which goes into the head / foot of the bed measures:
- 17 mm [ 1.7 cm ] in length
- 15 mm [ 1.5 cm ] outside (external) diameter
